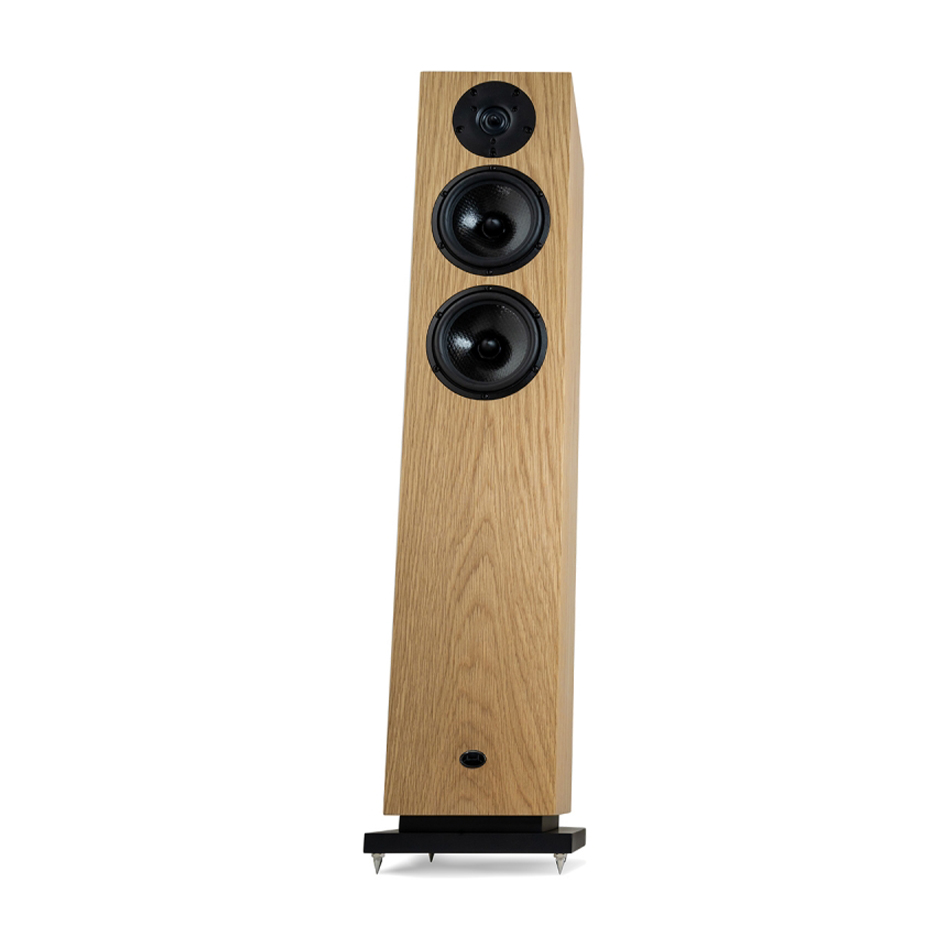

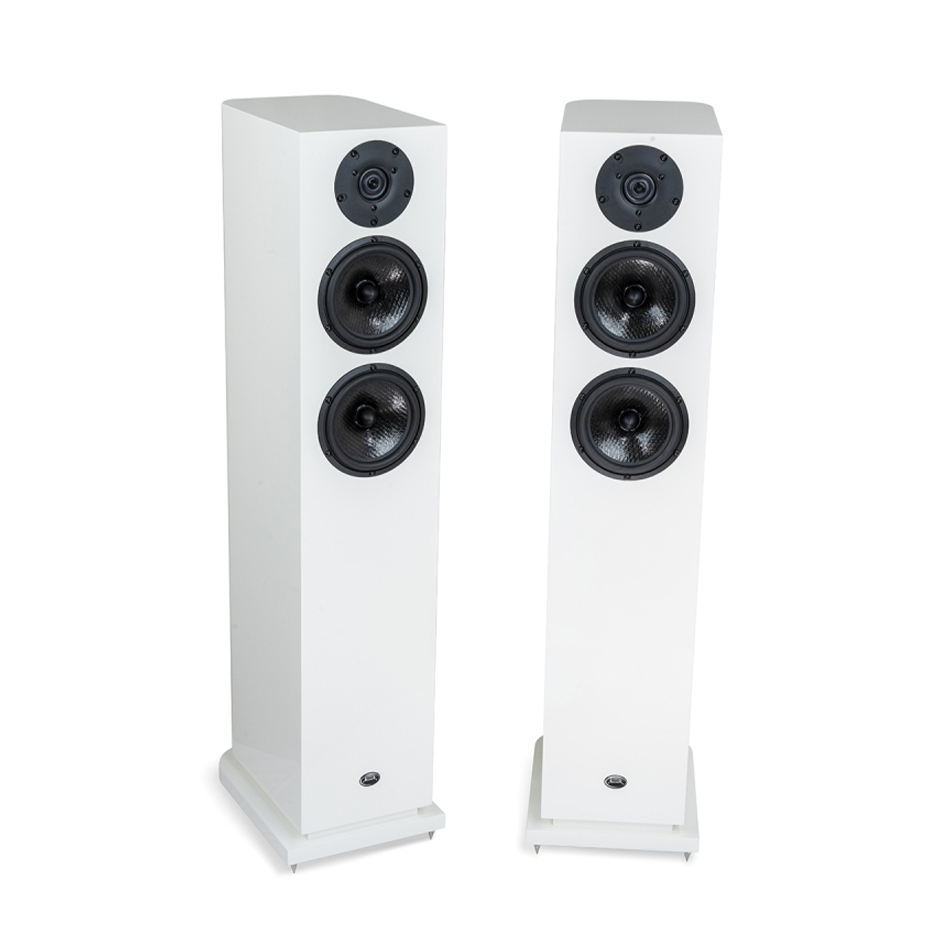

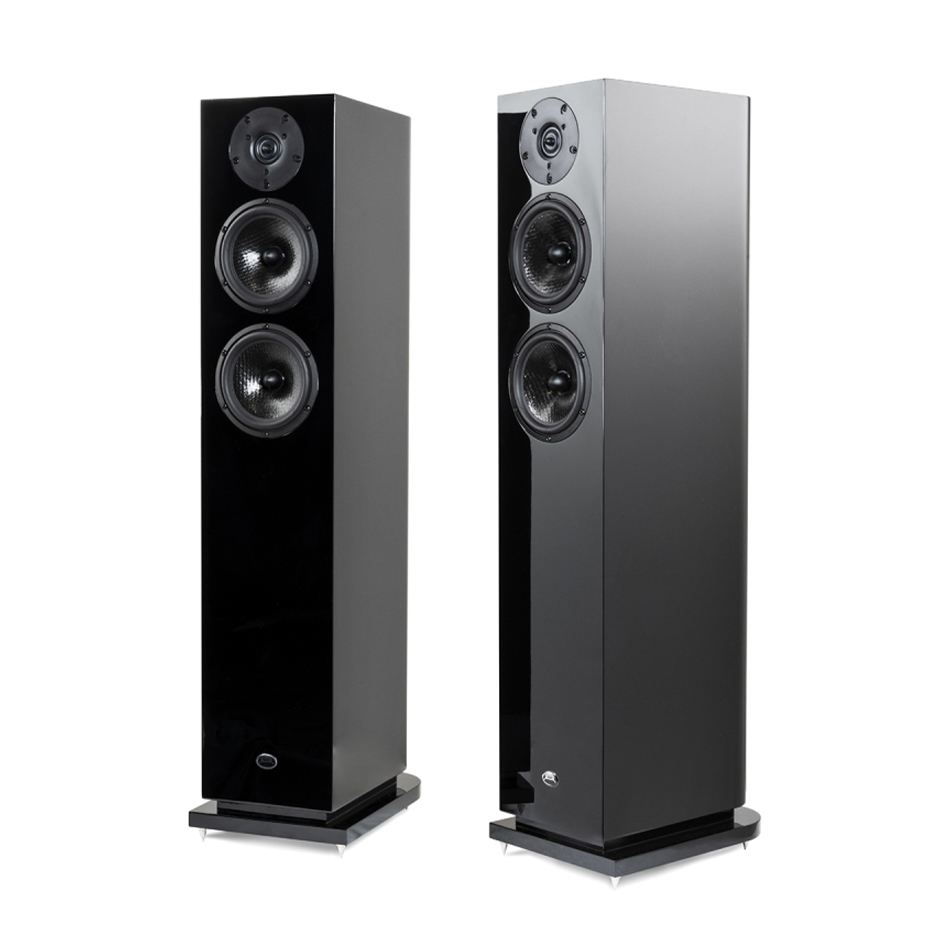

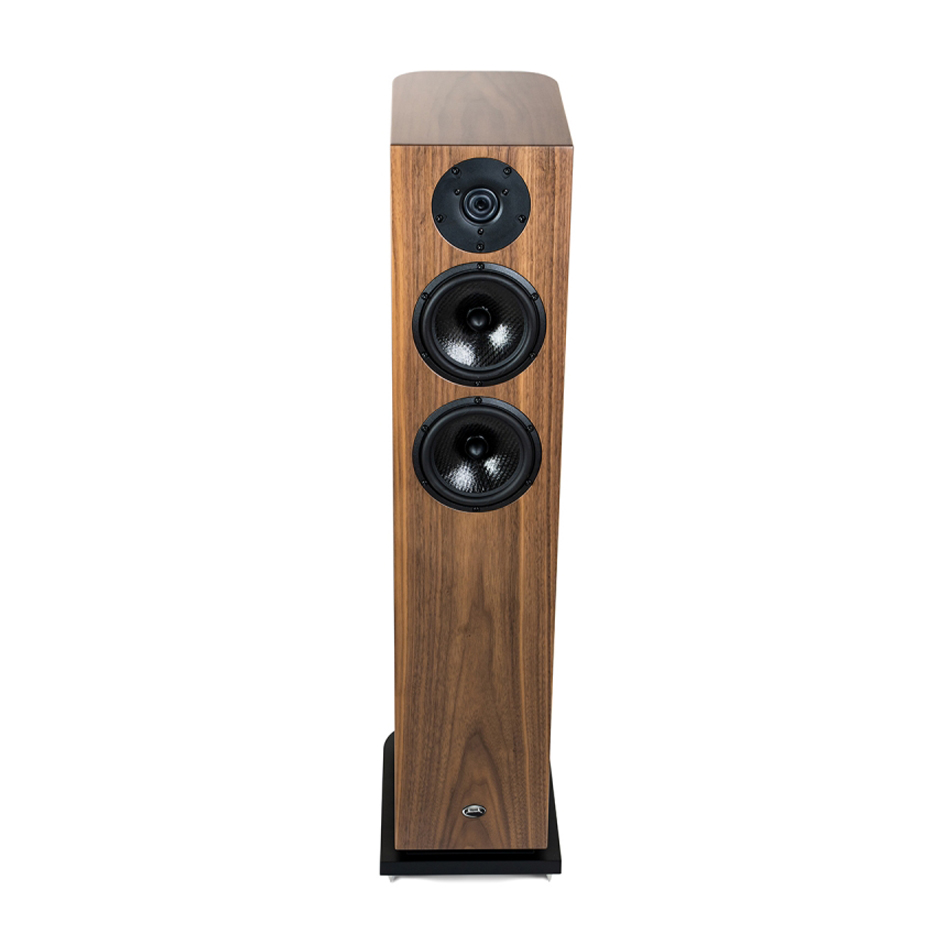

Apertura Stela Floorstanding Speakers (Pair)

ENCLOSURE

• 18mm MDF cabinet.
• Four internal Bracing panels to stiffen the mechanical structure and limit propagation of parasite vibrations. Those internal bracing panels create specific cavities where damping materials can be applied for standing waves cancellation.
• No less than 4 different types of dumping material are used.
• The acoustic load on Stela is a bass-reflex with a vent tube on the rear.
• A well-proportioned base plate ensures that the speaker remains stable.
• Four adjustable spikes allow a fine positioning of the speaker.

DRIVE UNITS

• Two 16 cm bass-midrange drivers from Seas. The driver cone is of “Isotactic Matrix” technology. A composite of woven coated polypropylene tapes. This material has excellent linearity and damping properties.
• The design of the magnetic circuit has been optimised to concentrate the flux on the 26mm coil. The voice coil is ventilated to avoid compression effects between the phase plug and the pole piece. The low-loss rubber surround has radial reinforcements, which helps to reduce break-up modes during long excursions.
• The 25mm Tweeter is a member of the “Ring Radiator” family. It has an extended frequency response beyond 30kHz and excellent directivity performance. The heavy magnetic circuit is based on a double ferrite bringing a gain in sensitivity and a lower level of distortion, at constant level.
• A rear wave damping cavity lowers the resonant frequency of the driver.

CROSS OVER

• Like each Apertura speaker, Stela is fitted with a passiv proprietary « DRIM » crossover, with triple attenuation slopes (6,12 24dB per Octave), phase compliance over the entire bandwidth is granted as well as the absence of intermodulation.
• Hand wiring in our facility in Puceul, on a 140 μm copper printed circuit board.
• All components are audiophile grade – heavy gauge coated enamel wire inductors, polypropylene capacitors, wound resistors. The internal wiring uses our heavy gauge OFC copper cable.

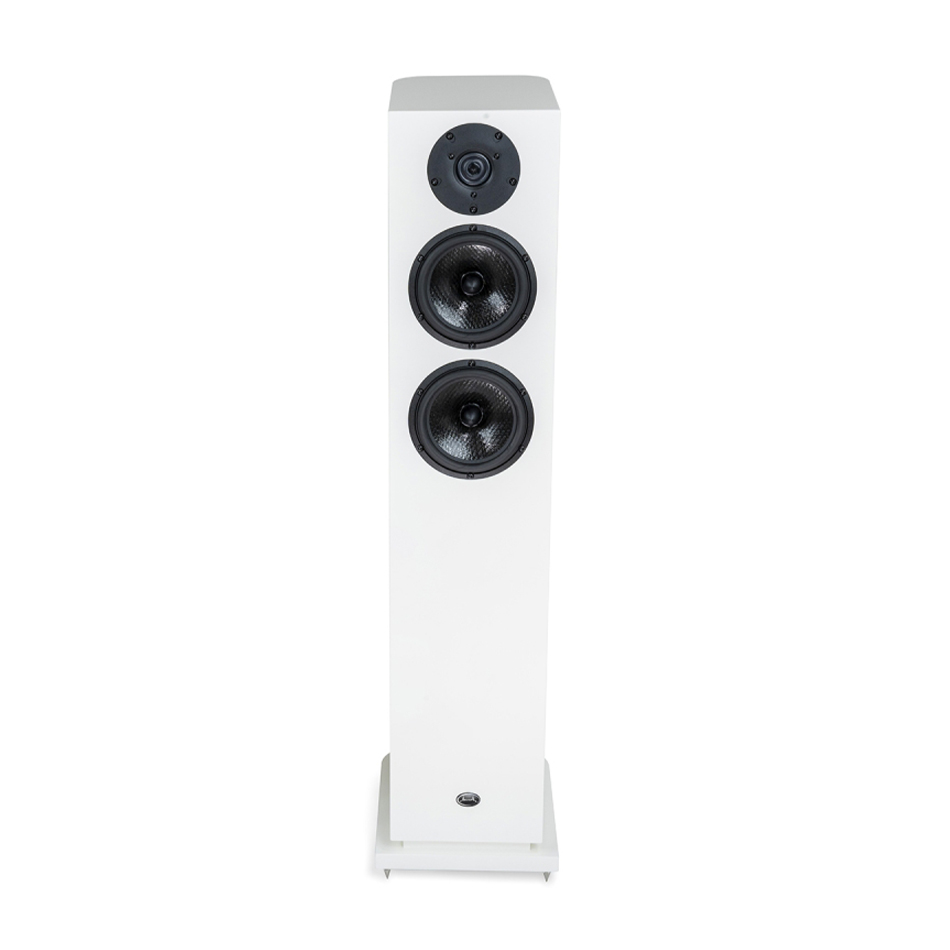

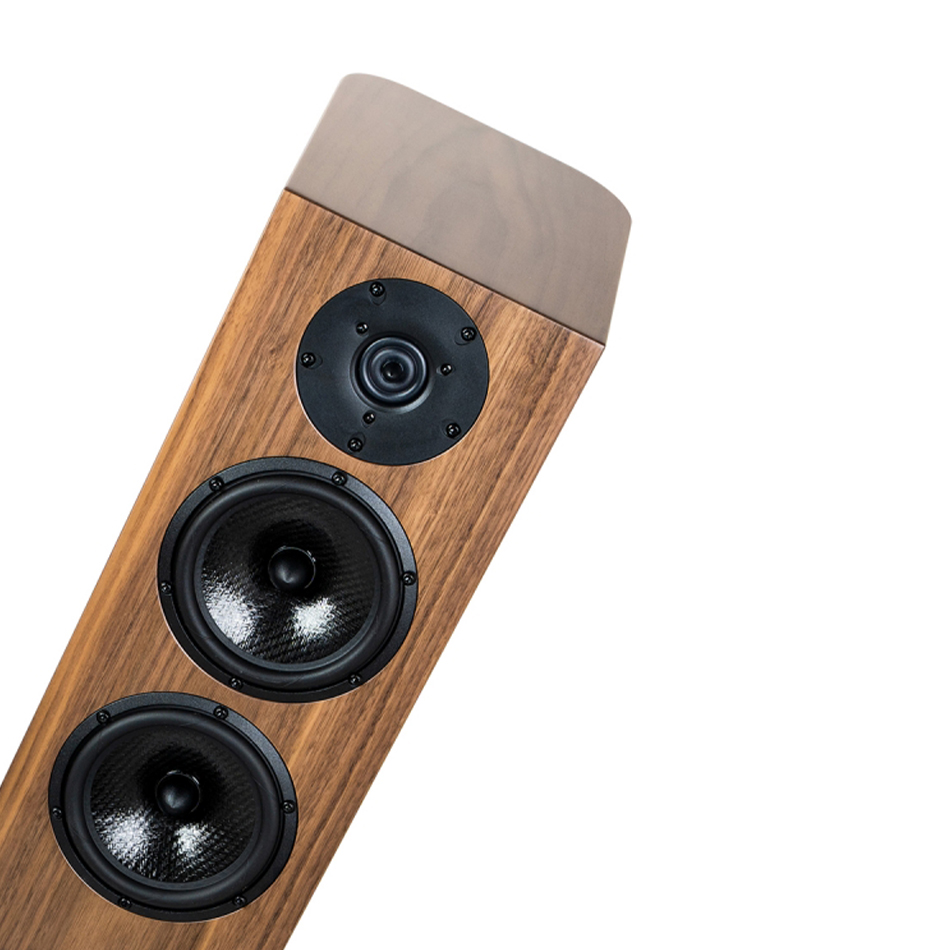

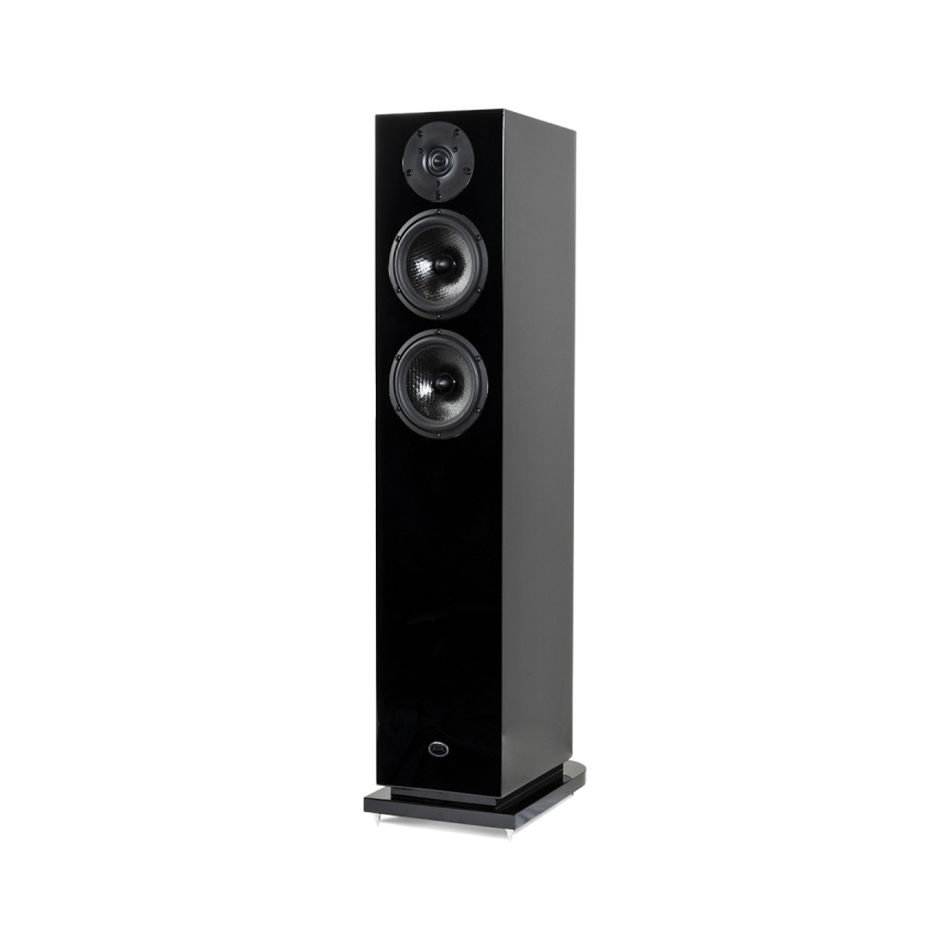

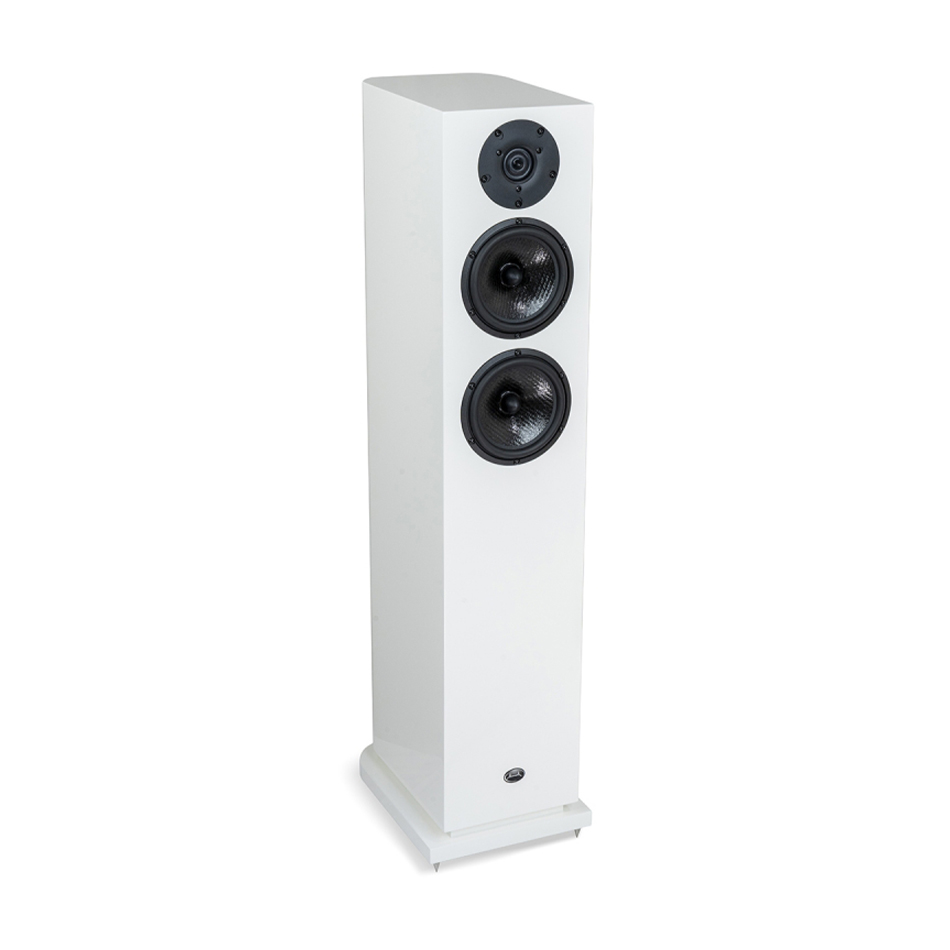

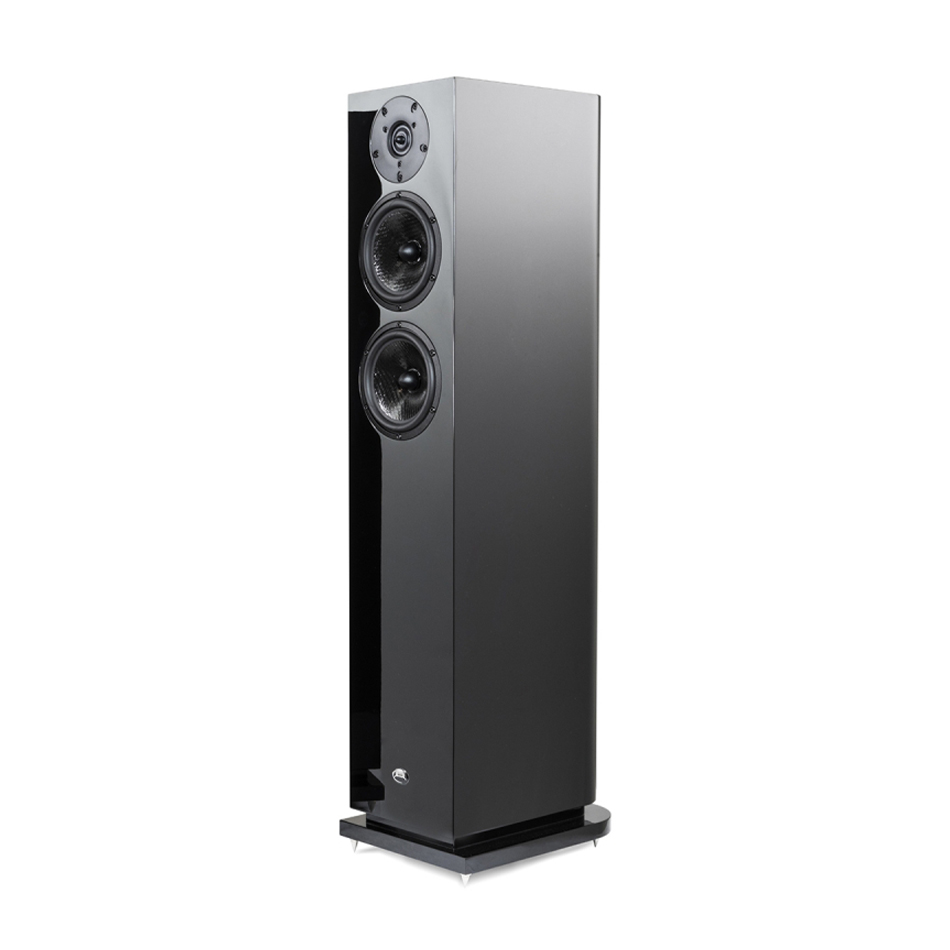

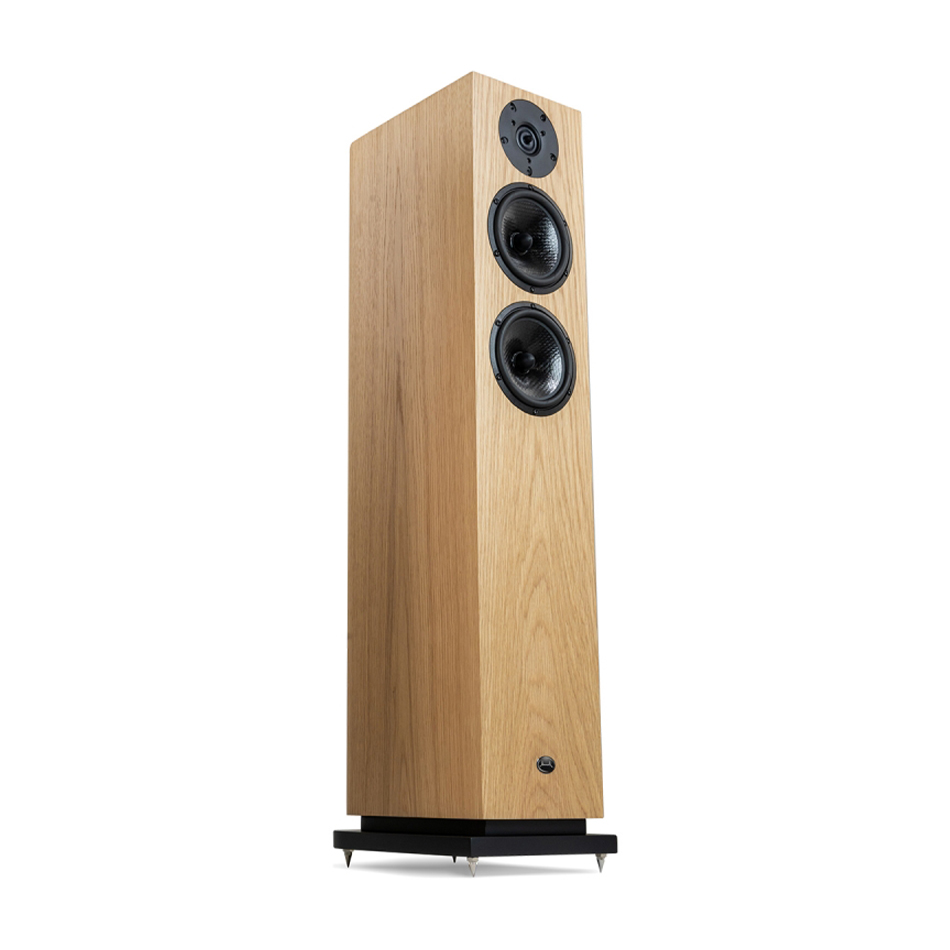

• Three differents standard finishes available

SPECIFICATIONS:

• Drive units : 2x Grave-medium 16cm “Isotactic Matrix”, 1x “Ring Radiator” Tweeter 25mm double ferrite
• Frequency range (+/- 3dB) : 40 Hz – 30kHz
• Sensibility : 88dB/2.83v/1m
• Impedance nom. : 8Ω
• Impedance min. : 6Ω
• Crossover frequency : 3,4 kHz
• Dimensions (W x D x H) : 230 x 310 x 970 mm (with stand and spikes)
• Weight : 19 kg
