New
Click to enlarge
HomeEquipmentDAC Ferrum ERCO Fully Balanced Headphone DAC/AMP
Previous product
Volumio Primo Hi-Fi Edition Network Player AED 2,990 AED 2,390 inc. vat
Back to products
Next product
KLH Model Five Floorstanding Speakers (Pair)
Ferrum

Ferrum ERCO Fully Balanced Headphone DAC/AMP

AED 9,490 inc. vat

ERCO fully balanced headphone DAC/AMP

  • Proprietary IC power amp design
  • Proprietary optimised-for-audio digital inputs
  • Proprietary optimised MQA rendering and decoding for ARM chip
  • Proprietary 4-pin Ferrum connector for HYPSOS
  • Balanced 4,4mm jack and unbalanced 6,35mm jack headphone outputs

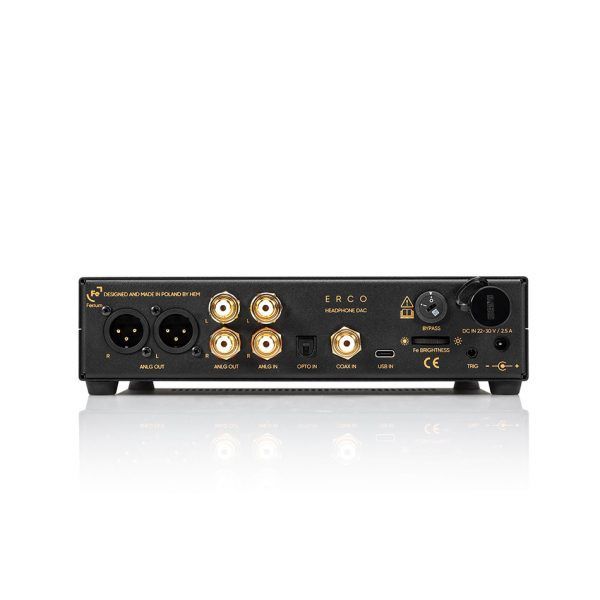

  • Balanced XLR and unbalanced RCA line outputs
Brand

Ferrum

In stock

SKU: fe-erco Categories: DAC, Equipment, Headphone Amplifiers
Share
Facebook Twitter Email Pinterest linkedin WhatsApp WhatsApp
  • Description
  • Specifications
Description

Like a top chef who uses his ingredients freshly and grown from his own garden, we integrated parts of the awarded HYPSOS technology and lend some of OOR’s magic to lay the first bricks for ERCO. Then we proceeded to add our culminated 20 years’ worth of experience in making DA converters. And man, did we pull it off. We managed to get the best out of our two winners and put it in our new sibling, adding awesome DA conversion to the mix.

  • Clearing the path for high end audio

Perfect mix of flagship Ferrum technology combined with high grade in house developed Digital to Analog conversion. Choose from three digital and one analog input.

  • Suited for high end personal audio

Connect your favourite headphones to the balanced 4,4mm jack or unbalanced 6,35mm headphone jack outputs or powered loudspeakers on your desktop to the XLR or RCA outputs to perform to their max.

  • Discrete/IC hybrid design

Ultra-wideband ICs fine tuned for audio use to achieve the best possible analog quality.

  • Ease of use

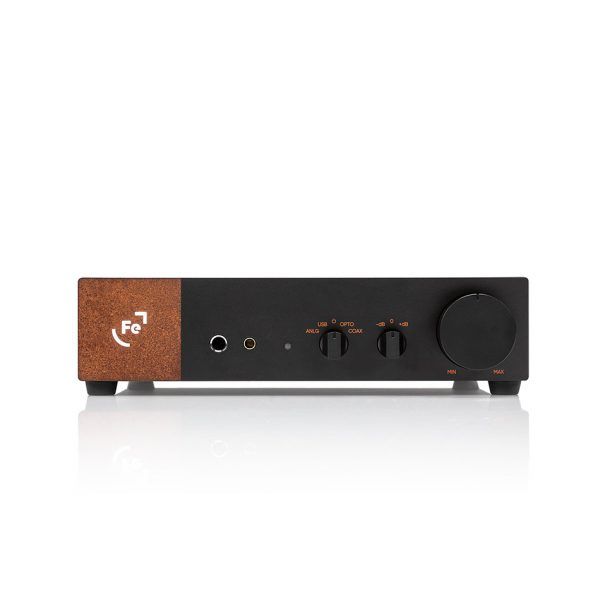

Hassle free operation. Only three knobs on the front panel to control the most important settings.

  • Proprietary Technology

Industry leading technology is applied. All digital ports are optimised for audio, MQA decoding and rendering is optimised for use with internal ARM chip.

  • Truly Balanced

The signal path is truly balanced from early D/A stage and becomes truly balanced using the RCA inputs.

  • Enhanced transparency

The whole design remains focussed on a balanced and very transparent sound signature, making listening fatigue something of the past.

  • Ferrum Power Link

ERCO performs very, very good right out of the box. But ERCO is made to excel above and beyond when used together with HYPSOS. We use what we dubbed our Ferrum Power Link (FPL in short) to connect the two. HYPSOS then will perform to its maximum, unleashing unheard musicality from the combination with ERCO.

Specifications
  • Headphone output gain: balanced -5.8 dB, +6 dB, +17.8 dB; single ended -11.8 dB, 0 dB, +11.8 dB
  • Operation: fully balanced, proprietary IC power amp
  • Power inputs: 5.5/2.5 mm DC connector center positive; proprietary FPL 4-pin DC connector (FPL)
  • Analog inputs: RCA (Consumer level; Pro option with future software update)
  • Digital inputs: USB-C (all formats); S/PDIF optical (up to 24-bit/96 kHz, DoP64); Coaxial (up to 24-bit/192 kHz, DoP64)
  • DAC chip: ESS Sabre ES9028PRO
  • PCM sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 kHz
  • DSD sample rates: 2.8224 / 3.072 / 5.6448 / 6.144 / 11.2896 / 12.288 MHz
  • MQA: decoder and renderer
  • DAC resolution: PCM up to 384k@32bit; DSD up to 256 (11.2 MHz / 12.2 MHz)
  • Headphone jack outputs: balanced 4.4 mm (TRRRS); unbalanced 6.35 mm (TRS)
  • Line outputs: balanced XLR; unbalanced RCA (both Consumer level; Pro with future software update)
  • Volume control: analogue with bypass option (bypass for line outputs only)
  • Frequency response: 10 Hz – 30 kHz (+/- 0.05 dB) 10 Hz – >200 kHz (+/- 1 dB)
  • Output power unbalanced: 300 mW into 300 Ω; 1,7 W into 50 Ω
  • Output power balanced: 1.2 W into 300 Ω; 6.1 W into 50 Ω
  • THD on balanced output: < 0.00018% / -115 dB, 1 mW into 16 Ω; < 0.00018% / -115 dB, 100 mW into 16 Ω
  • THD on unbalanced output: < 0.00032% / -110 dB, 1 mW into 16 Ω; < 0.00057% / -105 dB, 100 mW into 16 Ω
  • Dynamic range analog: 130 dB (A-weighted)
  • Dynamic range digital: 120 dB (A-weighted)
  • Input impedance: 47 kΩ
  • Output impedance unbalanced: 22 Ω on pre-amp
  • Output impedance balanced: 44 Ω on pre-amp
  • Output impedance Headphones: < 0.3 Ω
  • Power consumption: idle <15 W
  • Power adapter: 100-240V AC to 22-30V DC
  • Dimensions (W x D x H): 21.7 cm x 20.6 cm x 5 cm / 8.6” x 8.1” x 2.0”
  • Weight: 1.8 kg / 3.97 LBS
