Full Matrix Audio Routing
Route any input to any output. Our WEB based GUI makes customizing the amplifier simple. 8, 12, or 16 Channels of Premium Power

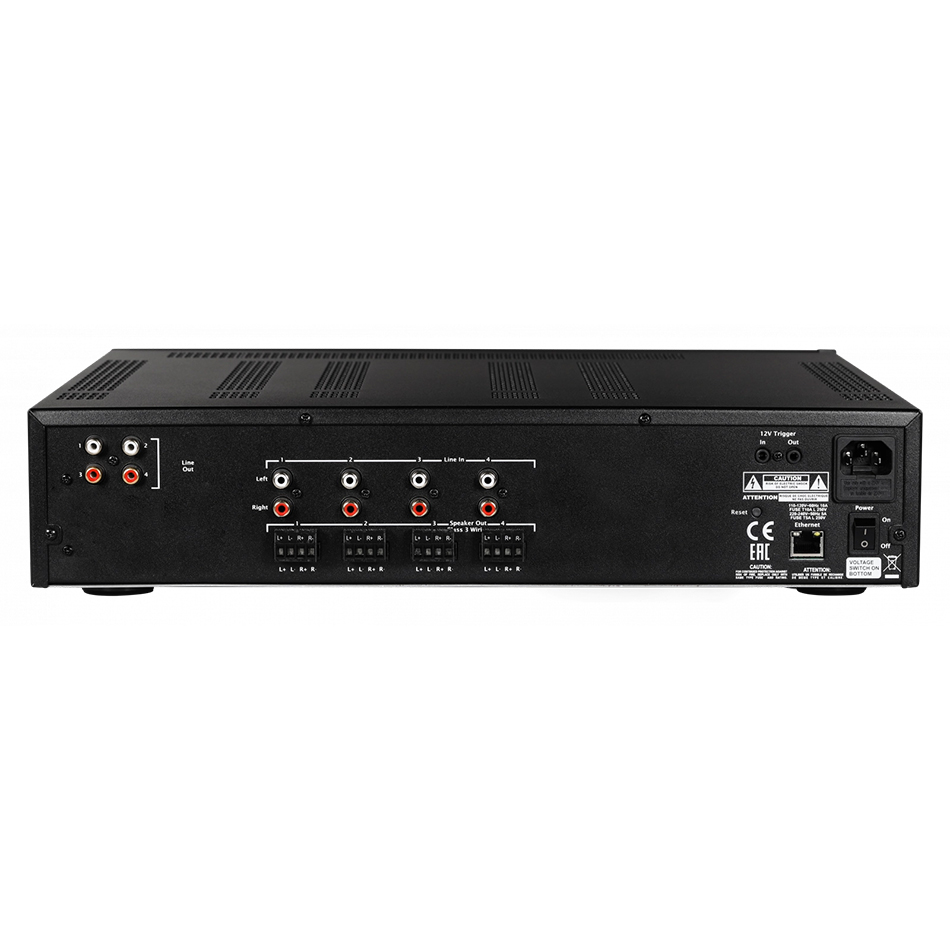

Configurable Audio Outputs
All of our multi-channel amplifiers feature assignable outputs (8-Channel 4 Outs), (12/16- Channel 8 Outs) allowing for extremely flexible projects. Power a room off in-ceiling speakers with the built-in amplifiers and assign one of the outputs to a powered subwoofer in the same room. You can even apply high- pass filters to the in-ceiling/in-wall speakers
Advanced DSP
Our advanced DSP allows for great flexibility when setting up each zone. A full Parametric Equalizer can be used for each output or simply use one of our presets for ELAC speakers to simplify the setup.
WEB GUI
Our WEB GUI allows for easy setup and tuning of the amplifier. A status screen shows the current state of each channel along with both input and output levels for each channel. Settings can be saved for easy replication of projects.
Specifications:
- Input Channels: 8
- Output Channels: 8
- Assignable outputs: 4
- Power output per channel @ 4W: 100
- Power output per channel @ 8W: 100
- Bridged Output power: 200
- Topology: Discrete Class D
- Frequency response: 20 Hz – 20 KHz
- Dimensions Width x Length: 425.45 mm x 346.08 mm
- Rack Spacing: 2 RU
- IP commands available (third party control): Control4, Crestron
