HomeDJ EquipmentsDJ Mixers Ecler Warm4 Professional Analogue Rotary DJ Mixer
Previous product
Atlas EOS 1.5em Power Cable C13 to UK Plug - 1.5m AED 999 AED 699 inc. vat
Back to products
Next product
Ecler Warm2 Professional Analogue Rotary DJ Mixer AED 2,999 inc. vat

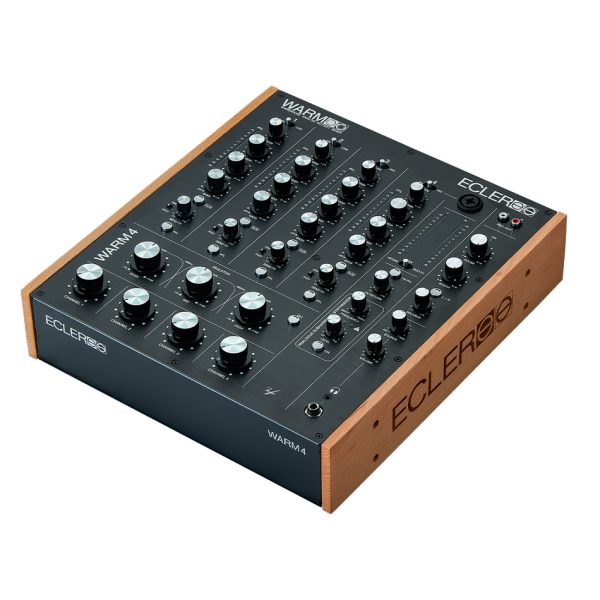

Ecler Warm4 Professional Analogue Rotary DJ Mixer

AED 5,799 inc. vat

WARM4 is a professional four channel analogue rotary DJ mixer, designed and manufactured by ECLER in Barcelona. Featuring 4 phono/line channels, 2 MIC inputs, classic sharp filters and a 4th order Isolator. WARM4 includes an unique feature, an Analogue Subharmonic Synthesizer selectable per channel, specially designed to generate and reinforce ultra-low frequencies.

  • 4 PHONO inputs, 4 LINE inputs, 4 Mixing channels
  • 3 Band full EQ cut
  • 3 Band Isolator (300Hz and 4KHz, -∞/+12dB, 4th order 24dB/oct )
  • Analogue Subharmonic Synthesizer for sub-bass frequency reinforcement selectable per channel
  • Alps metal shaft high quality potentiometers
Brand

Ecler DJ

In stock

SKU: ECR-WM4 Categories: DJ Equipments, DJ Mixers
Share
Facebook Twitter Email Pinterest linkedin WhatsApp WhatsApp
  • Description
  • Specifications
Description

WARM4 is Ecler’s newest rotary analogue mixer, inspired by New York’s Paradise Garage, described by François Kevorkian as the “temple of music” and whose influence has significantly shaped some of today’s best clubs. Designed and manufactured in our Barcelona facilities, WARM4 is a mixer that keeps in mind the classic Ecler mixers structure, with completely redesigned circuitry and mechanics. This goes from the new PCB board that further improves noise level and dynamic range, to the front-plate screwed potentiometers, carefully hand-assembled by our production team.

Keeping alive its innovative spirit since the first A4 mixer in 1971, Ecler introduces a dj tool never included in a mixer before: an analogue subharmonic synthesizer. Inspired by the original device installed in the Paradise Garage booth, we have created our own circuit that allows the subharmonic generator to be tuned to different
frequencies so that the dj can adapt it according to the recorded song and the features of the sound system. In WARM4 you will also find the 4th order Isolator filter already included in WARM2, as well as 4 mixing channels, 3-band full EQ cut per channel and Alps metal shaft high quality potentiometers. Using your favourite external effects module has never been easier. WARM4 offers you the opportunity to send the PRE/POST fader signal, as well as regulate and pre-listening to the amount of effects return.

WARM4 is specially designed for sound systems capable of reproducing this type of subsonic frequencies, clubs, festivals and events where subwoofers are of vital importance. Bring to your audience an unprecedented experience on the dancefloor and a different way of feeling the music.

  • 4 Mixing channels.
  • 4 PHONO inputs.
  • 4 LINE inputs.
  • 2 MICRO inputs.
  • Master Output on XLR and RCA connectors.
  • Booth Output on XLR and RCA connectors.
  • Headphone Monitor Output on 6.3mm Jack and 3.5mm mini-jack.
  • 3 Band full EQ cut.
  • 3 Band Isolator (300Hz and 4KHz, -∞/+12dB, 4th order 24dB/oct ).
  • Analogue Subharmonic Synthesizer for sub-bass frequency reinforcement selectable per channel.
  • Maximum Output without distortion: 21dBV (23dBu).
  • FX Send control and Pre/Post fader selector per channel.
  • FX Return control and PFL.
  • Alps metal shaft high quality potentiometers.
  • Mechanized from a solid block of aluminium knob, without visible screw. Ecler Unique design.
  • Wooden side panels included.
Specifications
  • Number of Inputs
    • LINE : 4 Stereo Unbalanced Inputs
    • PHONO : 4 Stereo Unbalanced Inputs
    • MICRO : 2 Mono Balanced Inputs
    • FX RETURN : 1 Stereo Unbalanced Input

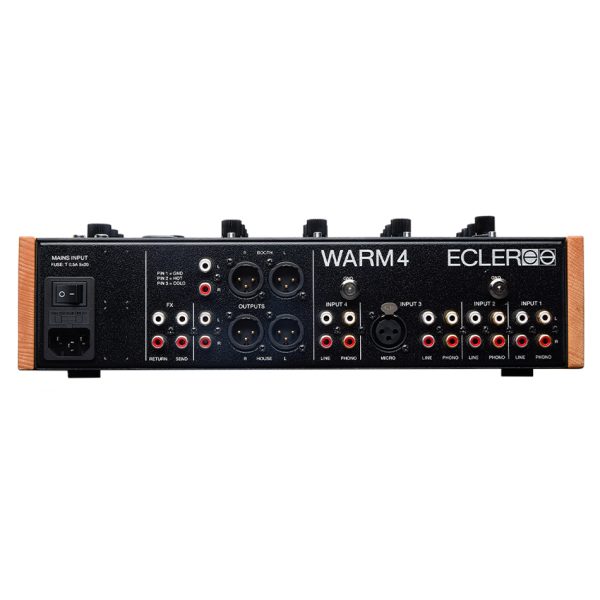

  • Connectors type:
    • LINE 1-2-3-4 : RCA STEREO
    • PHONO 1-2-3-4 : RCA STEREO
    • MICRO 3 : XLR3-F
    • MICRO 4 : Combo XLR3F-6.3mm TRS BAL
    • FX RETURN : RCA STEREO
  • Inputs Sensitivity nom/Impedance:
    • LINE : 0dBV/50kΩ
    • PHONO : -40dBV/50kΩ
    • MICRO : -50dBV/>1kΩ
    • FX RETURN : 0dBV/>6kΩ
  • Frequency Response:
    • LINE : 10Hz÷30kHz -1dB
    • MICRO : 10Hz÷25kHz -1dB
    • PHONO : RIAA ±0.5dB
    • FX RETURN : 10Hz÷50kHz -1dB
  • THD+N:
    • LINE : <0.004%
    • MICRO : <0.7%
    • PHONO : <0.06%
    • FX RETURN : <0.001%
  • CMMR: MICRO : >75dB @ 1kHz
  • Signal Noise Ratio:
    • LINE : >105dB
    • MICRO : >90dB
    • PHONO : >100dB
    • FX RETURN : >110dB
  • Trim control / Tone control Inputs 1-2-3-4:
    • INPUTS 1-2-3-4 : ± 15dB
    • BASS : +10/-30dB
    • MID : +10/-25dB
    • TREBLE : +10/-30dB
  • Trim control / Tone control Isolator:
    • BASS : +12/-70dB
    • MID : +12/-40dB
    • TREBLE : +12/-70dB
  • Tone Filter cut frequency at -6dB (slope 12dB/oct):
    • BASS : 200Hz
    • MID : 200Hz÷6.8kHz
    • TREBLE : 6.8kHz
  • Isolator cut frequency at -6dB (slope 24dB/oct):
    • BASS : 300 Hz
    • MID : 300Hz÷4kHz
    • TREBLE : 4kHz
  • Analogue Subharmonic Synthesizer:
    • Input selective filter : 50÷120Hz
    • Harmonics synthesis : 25÷60Hz
    • Max Output level : +12dBV
  • Number of Outputs:
    • HOUSE : 1 Stereo Balanced Outputs / 1 Stereo Unbalanced Outputs
    • BOOTH : 1 Stereo Balanced Outputs / 1 Stereo Unbalanced Outputs
    • HEADPHONE : 2 Stereo Unbalanced Outputs
    • FX SEND : 1 Stereo Unbalanced
    • REC : 1 Stereo Unbalanced
  • Connectors Type:
    • HOUSE : XLR3-M STEREO / RCA STEREO
    • BOOTH : XLR3-M STEREO / RCA STEREO
    • HEADPHONE : Jack Stereo 6.3mm / Jack Stereo 3.5mm
    • FX SEND : RCA STEREO
    • REC : RCA STEREO
  • Outputs Level/Minimum Load:
    • HOUSE (BAL) : 0dBV/600Ω 1V *(+12dB 4V)
    • HOUSE (UNBAL) : 0dBV/2.2kΩ 1V *(+12dB 4V)
    • BOOTH (BAL) : 0dBV/2.2kΩ 1V *(+12dB 4V)
    • BOOTH (UNBAL) : 0dBV/2.2kΩ 1V *(+12dB 4V)
    • REC : 0dBV/10kΩ
    • HEADPHONES : 200mΩ/200Ω THD 1%
    • FX SEND : 0dBV/2.2kΩ
  • Max Undistorted Output Level:
    • HOUSE (Electr.BAL) : 21dBV (23dBu)
    • BOOTH (Electr.BAL) : 21dBV (23dBu)
    • HOUSE (UNBAL) : 21dBV (23dBu)
    • BOOTH (UNBAL) : 21dBV (23dBu)
