3-Point Floating Suspension (3D Isolation)
The Model One introduces a new 3-Point Floating Suspension system designed for superior isolation from external vibrations. This advanced 3D isolation system stabilizes the turntable, minimizes motor noise, and reduces both external and internal vibrations.
Specifications
- Chassis Composition: Wood Skirt with Machine Aluminum top plate
- Platter Type & Size: 12″ Aluminum, 20lbs
- Tonearm Included: VPI S-Tonearm
- Motor RPM: 300 RPM
- Motor Pulley Accuracy: +/- .0005″
- Wow and Flutter: .05%
- Speed Accuracy: .05%
- Rumble: 80 db Down
- Footprint: 19 ½” x 13 ¾”
- Overall Size: 21 ⅜” x 15 ¾”
- Total Weight: 40lbs

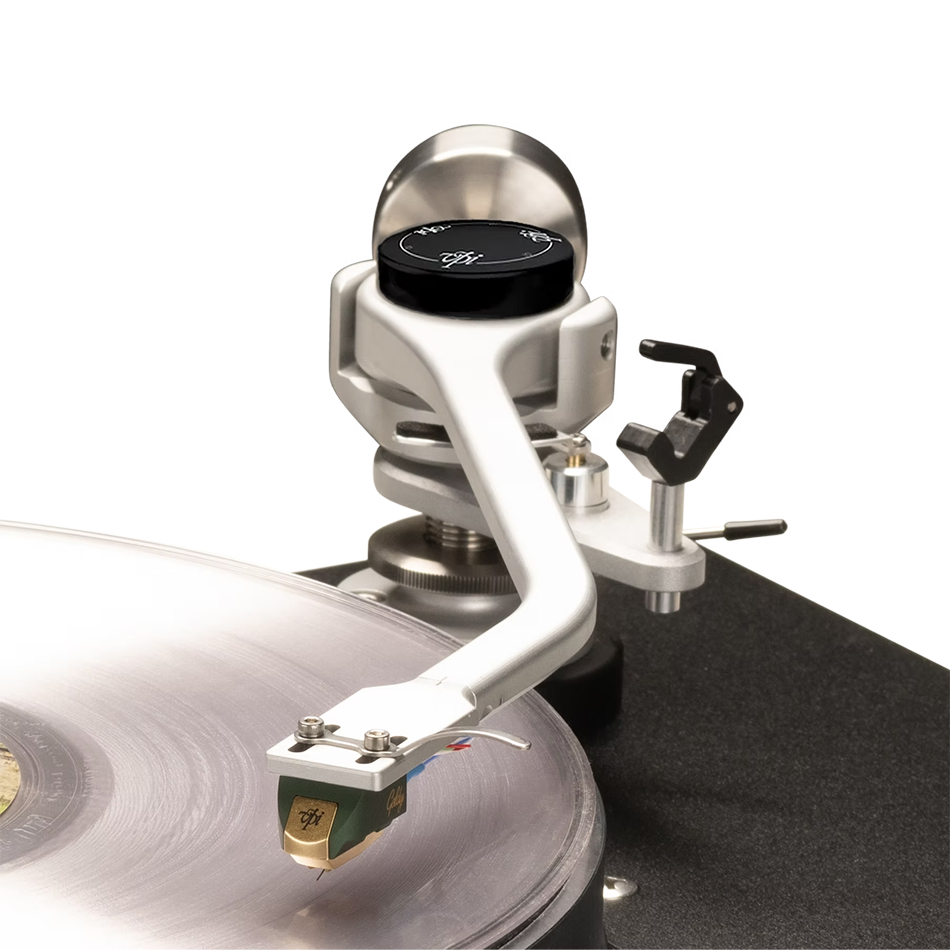

Tonearm
- Type: 10-inch, S-shaped, statically balanced tonearm
- Effective length: 255 mm
- Mounting distance: 240 mm
- Effective mass: 10.4 g
- Overhang: 15 mm
- Pickup weight: 5–15 g
- Height adjustment: 40–65 mm
- Anti-skating: Yes
- Headshell: Solid aluminum
- Offset angle: 21 degrees
- Internal wiring: 69 VPI Copper wire
