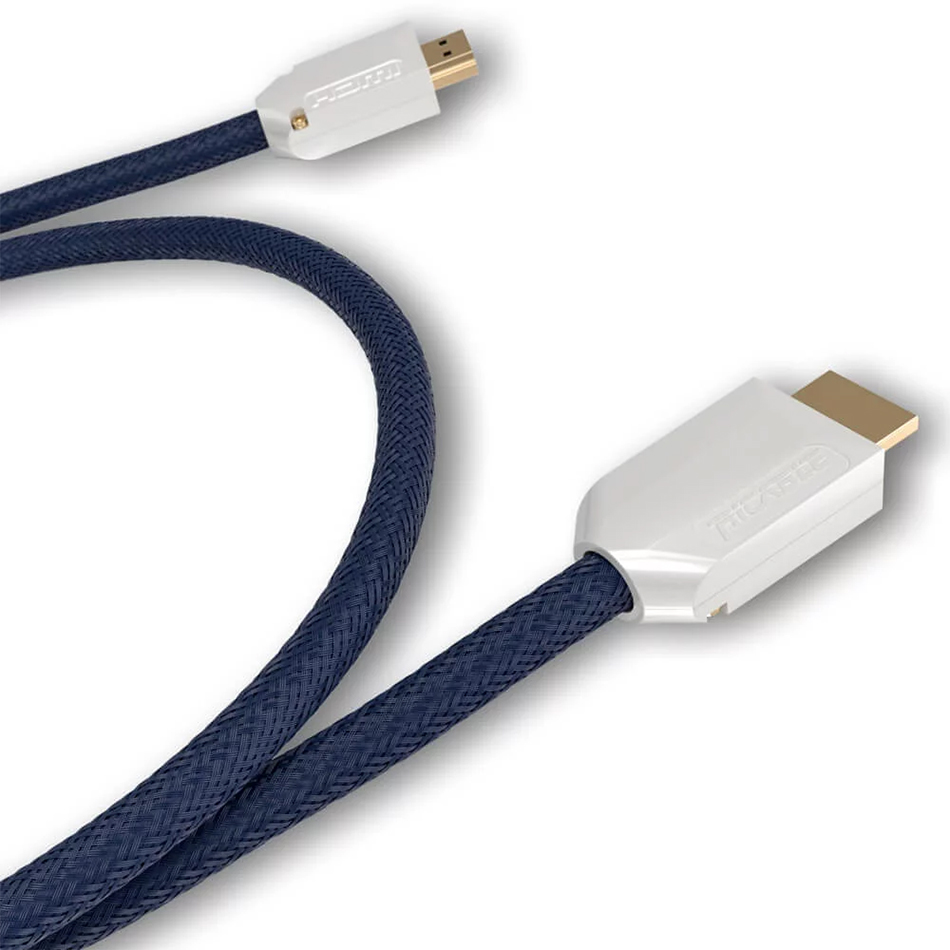

Supreme MKII, the revision for I²S audio
Why did we decide to improve with an MKII revision an HDMI cable with an outdated version like 2.0b? Simple, because Supreme HDMI performs darn well with these kinds of connections, which are still very common within a great many Audio/Video systems, and in these contexts it often performs even better than Visus 2.1.
Another very important reason for this Upgrade is the introduction in the Hi-Fi Audio world of the I²S protocol over HDMI port. This type of digital connection that is increasingly present in electronics, has transfer requirements that do not follow HDMI standards as is the case in the Video world, as we have ascertained that to carry this type INTERCONNECT to separate clock, the construction structure of Supreme HDMI is much better than HDMI 2.1 cables.
It is important to remember that in order to enjoy the performance and functionality of I²S over HDMI port, it is essential that the two devices have the same pinout, as there is no real standard as there is for HDMI video, consequently it may happen to have two devices with different pinouts.
Removable Shell , Great Comfort.
It is often the case, especially when it comes to home theater systems, that we are faced with the need to put HDMI cables in corrugated or conduit, and this becomes a problem when the connector is too large to pass through the wall.
To overcome this inconvenience, Ricable has implemented a removable shell in Supreme HDMI to greatly reduce the head size of the connector and allow easy transit in tubes with 20 mm clearance.
The procedure is very simple: following the instructions provided with the product, simply unscrew the two screws that hold the connector shell in place, momentarily remove the shell, run the cable through the corrugated, and reassemble the shell once the procedure is complete.
SPECIFICATIONS:
- Bandwidth: > 29 Gbps
- Clock Rate: 1000 MHz
- Support of: Ultra HD 4K, 3D and 3D 4K, 32 Audio Channels, Lossless Audio up to 1563 kHz, 21:9 Native Video, Ethernet Channel (HEC), AudioReturn Channel (ARC), Audio/Video Multistream
- HDMI version: 2.0 rev.B with Ethernet (backward compatible with 1.4 and 1.3 technologies)
- Outer Diameter: Ø 9 mm
- Conductor Structure: Twisted double with main conductors in separate screen
- Diameter strand: 24 AWG Solid Core
- Material Conductors: Pure Copper OCC Monocrystalline 99.9999%.
- Dielectric Insulator: Ultra-high density PTFE
- Internal Shielding: Mylar and Aluminum
- External Shielding: Tinned OFC Copper Braid Increased
- External Protection: Nylon sock with high mechanical strength
- Connector Material: Anti-Disturbance League
- Contact; 24 K Gold Plated
