Premium class phono preamplifier with big display
This ultra low noise precision phono preamplifier benefits from outstanding circuit technology from Dr. Sykora, well-known from Phono Box S, but uses ultimate components. For the first time all setup options can be made from the front panel display, what makes circumstantial handling of mini dipswitches or jumpers obsolete. Exceptional performance and outstanding flexibility with almost any MM or MC cartridge make Phono Box DS+ the best choice in its price class. All switching is done by relais including a subsonic filter, that prevents your amplifier and speakers of ultra low rumble below 20Hz. Carefully selected amplifier modules and audiophile-grade polypropylene capacitors guarantee a breathtaking sound experience. Therefore Phono Box DS+ is a perfect upgrade for hifi systems of ambitious vinyl aficionados!
- MM and MC capable
- Linear RIAA equalisation
- Ultimate circuit technology from Dr. Sykora
- Ultra low noise and low distortion levels
- Double mono SMD circuitry
- Low loss polypropylen capacitors
- Substantial setup options
- Classy and elegant display shows setup parameters
- DC power supply (less than 1 watt standby power)
- Relay switching
- Metal casing protects against vibration and interference
Specifications:
- Input impedance: 10 / 100 / 1000ohms or 47kohms
- Load capacity switchable: 47pF 147pF, 267pF, 367pF(only relevant for MM @ 47kohms)
- Gain: MM or high output MC: 40, 45 dB, low output MC: 60, 65 dB
- Signal to noise ratio: 90dB (A weighted @ 40dB input gain)
- THD: < 0,005%
- RIAA accuracy : within 0,3dB/20Hz – 20kHz
- Subsonic: 20Hz / – 12dB

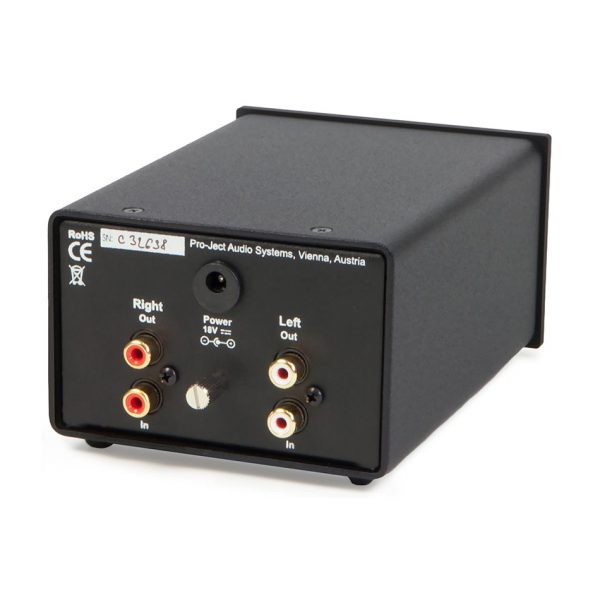

- Input & Output: RCA
- Power supply: 15V/500mA DC; 220 – 240V, 50Hz
- Power consumption: 200mA DC < 1 watt standby
- Dimensions W x H x D (D with sockets) 103 x 72 x 144 (156)mm
- Weight: 1025g without power supply
