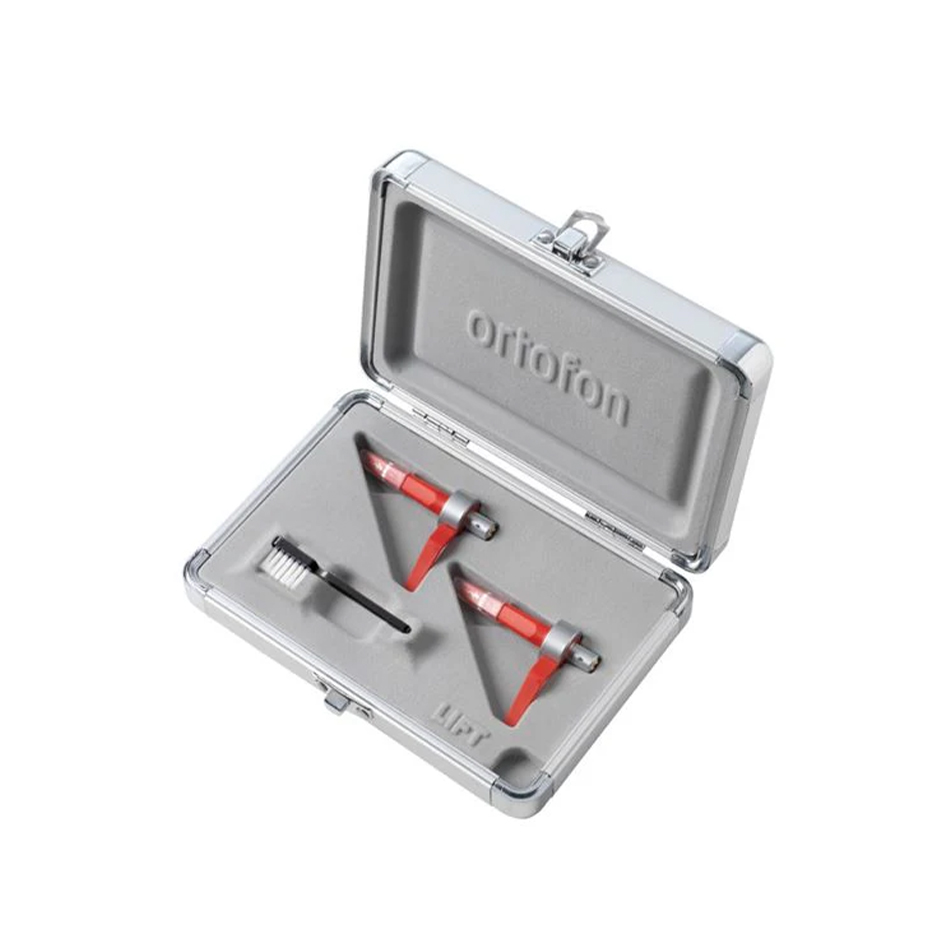

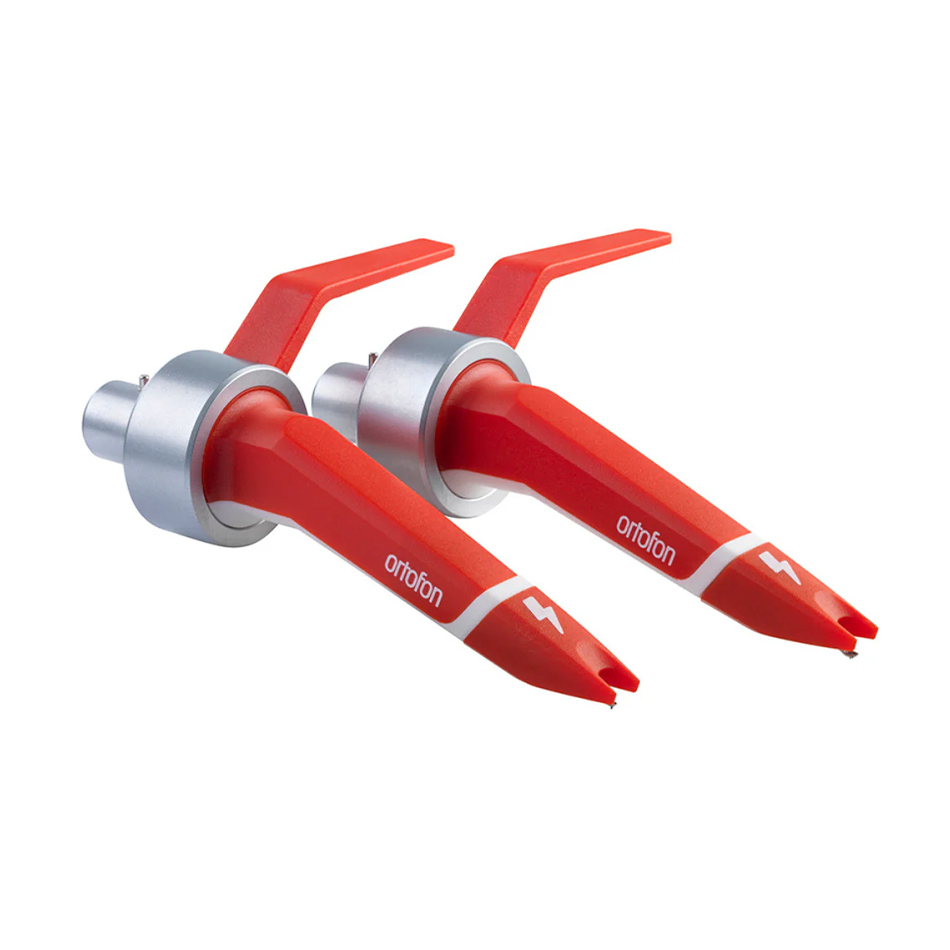

Ortofon Concorde MKII Twin Digital

Output

The DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl. This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.

Frequency range

A decrease in the reproduction of frequencies where vinyl wear and crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.

Specifications:

• Channel balance at 1 kHz: 1 dB
• Output voltage at 1 kHz, 5cm/sec: 10 mV
• Channel separation at 1 kHz: 22 dB
• Tracking ability at 315Hz: 100 μm
• Compliance, dynamic, lateral: 14 μm/m N
• Cantilever material: Aluminium
• Stylus type: Spherical diamond
• Stylus tip radius: R 18 μm
• Tracking force range: 3 – 5 g
• Tracking force, recommended: 4 g
• Internal impedance, DC resistance: 1200 Ohm
• Cartridge weight: 18,5 g
• Recommended load resistance: 47 kOhm
• Internal inductance: 850 mH
• Recommended load capacitance: 200-400 pF
• Replacement stylus: Stylus CC MKII Digital
