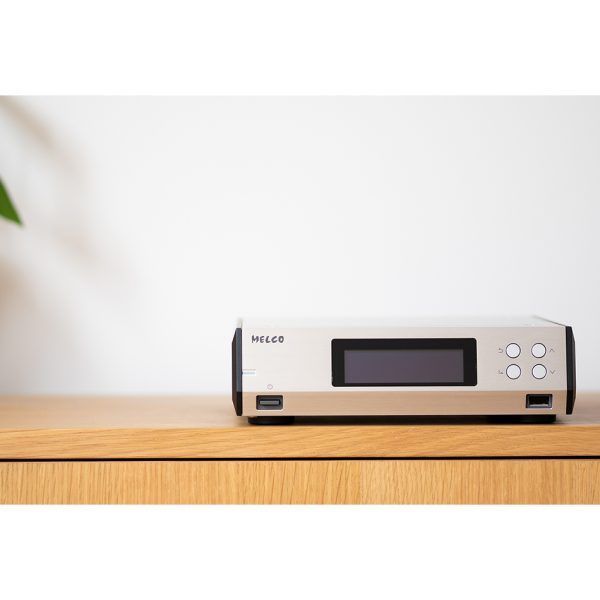

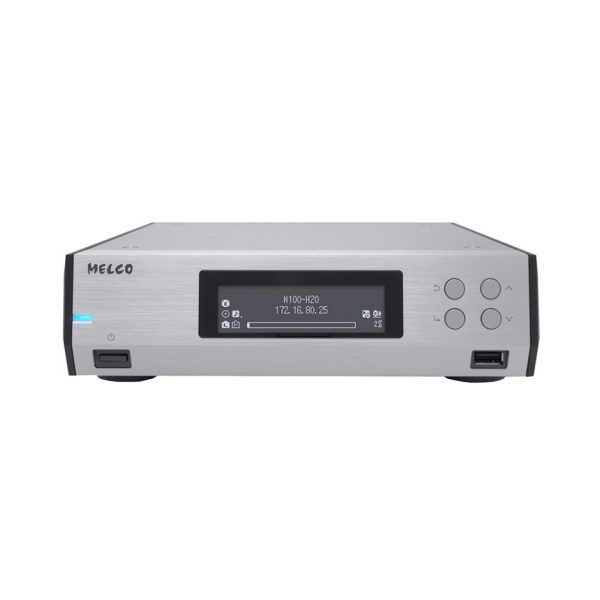

N100 is the half-sized model of MELCO Digital Music Library – store your local file music tidily and play music with USB-DAC or Network Player. The size and design is same as MELCO CD drive “D100” or network switch “S100“.
Made in Japan by “Takumi” ( “master” in Japanese).

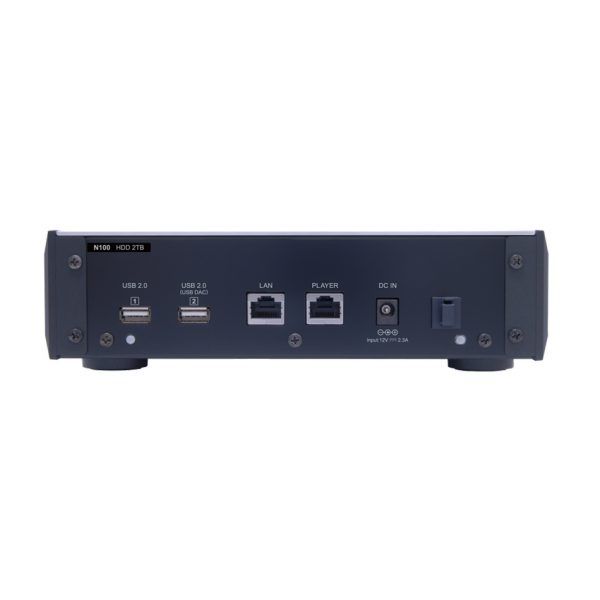

- LAN port for direct connection with player (no LED for status indication)
- USB2.0 x3 are compatible with USB-DAC, USB CD drive and USB storage such as USB HDD or USB flash memory. When the drive is connected, user can choose the purpose of the drive on the front display. (Import, expansion, backup, restore etc)
Low C/N clock of NDK - Power management system by FPGA for improved system stability.
- Fan-less design
Specifications:
- Music storage:
- 1 x 3.5 inch selected HDD2TB on
- Melco HS-S2 isolation platform
- Network connectivity:
- LAN Port-Gigabit Ethernet (1000Base-T),
- PLAYER port,
- Gigabit Ethernet (1000Base-T),
- DHCP server in isolated mode
- USB connectivity:
- USB2.0 Front panel x 1
- USB2.0 Rear panel x 2
- Assignable as DAC, backup, import, expansion
- USB Player sample rate support:
- 16-32 bit (PCM) to 384kHz:- auto downsample to suit connected DAC.
- Gapless PCM supported.
- 1 bit (DSD) to 11.3MHz Quad DSD.
- Markerless DSD supported.
- DSD to 32bit PCM conversion selectable.
- Gapless DSD supported.
- OLED displays player sample rate.
- Power supply: Universal power adapter 100-240V AC 48W
- Size: 215 x 61 x 269mm (W H L)
- Weight: 3kg
