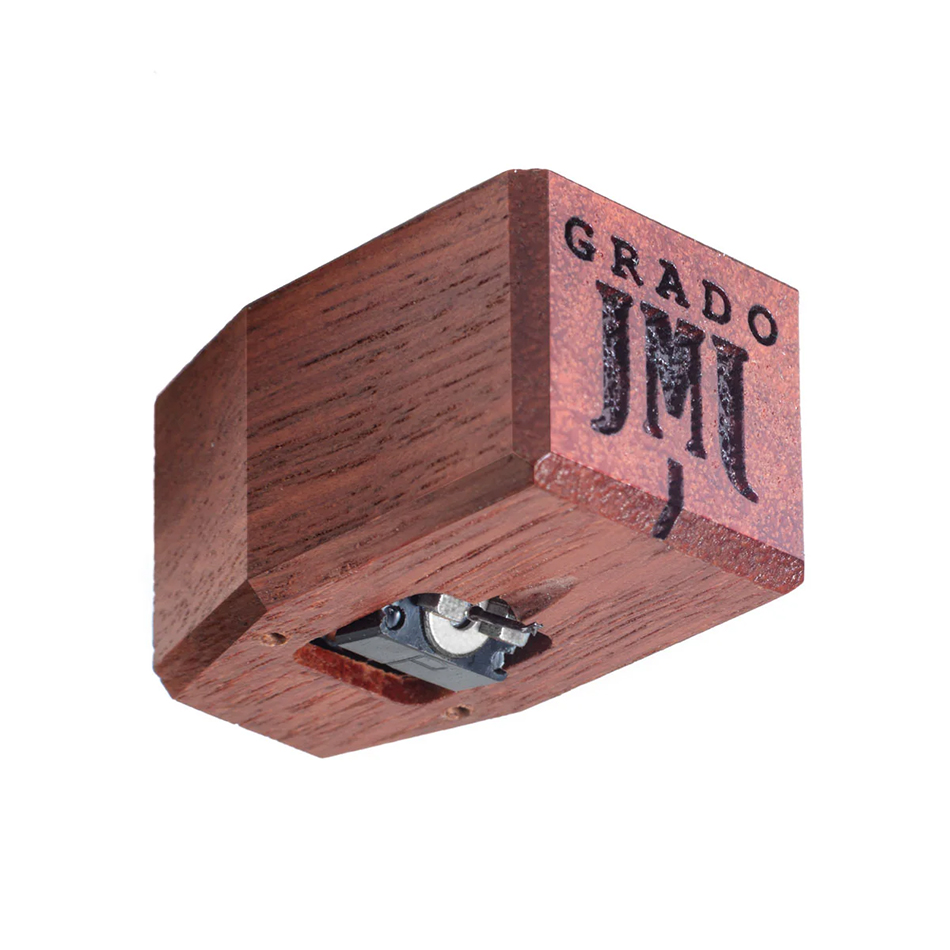

Grado Timbre Series Reference3 Cartridge – High Output

Name: Grado Timbre Series Reference3 Cartridge - High Output
Brand: Grado
SKU: grd-ref3
Price: 5599.00 AED
Availability: InStock

AED 5,599 inc. vat

The Master3 and Reference3 models use a five piece OTL cantilever technology achieving an additional 5% tip mass reduction over the Platinum3 and Sonata3 models. The coils are wound with ultra-high purity long crystal (UHPLC) oxygen free copper wire. The Master3 model is mounted with Grado’s specially designed nude elliptical diamond, and the Reference3 model uses Grado’s true ellipsoid design diamond. These cartridges are individually calibrated.

Body: Australian Jarrah Wood
Cantileaver: Machined Boron / Diamond Tip
Cartridge Weight: 10 grams
Tracking Force: 1.6-1.9 grams

Brand	Grado
Cartridge Type	Moving Magnet

In stock

SKU: grd-ref3 Category: Cartridges

Description
About Grado

Description

Specifications:

Body: Australian Jarrah Wood
Cantileaver: Machined Boron / Diamond Tip
Output: High 4.0mV @5 CMV (45)
Inductance: High Output 55mH
Resistance: High Output 660 ohms
Input Load: 10k-47k ohms
Cartridge Weight: 10 grams
Tracking Force: 1.6-1.9 grams
Compliance 20μm/mN
Channel Separation: Average 30db – 10-30k Hz
Controlled Frequency Response: 10-60 KHz
Non-Sensative to Capacitive Load
Builds: High Output, Low Output, Mono

About Grado

Grado Labs has built a strong reputation for its specialty headphones and phonograph cartridges since opening its doors in Brooklyn more than 60 years ago
