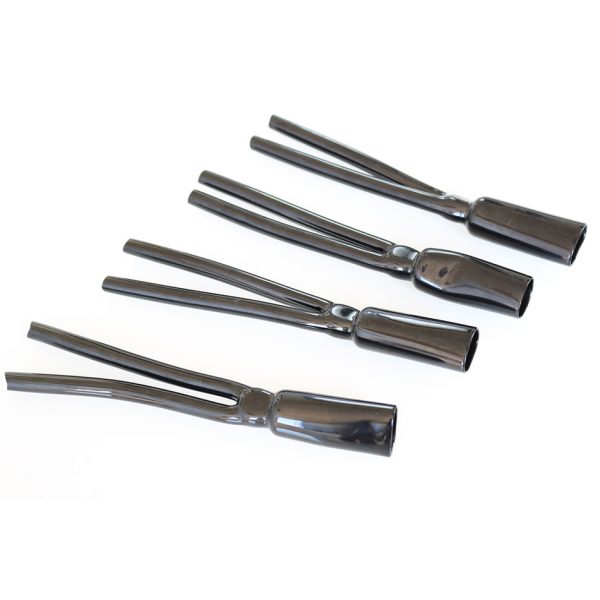

Kit of 4 splitter forks for terminating Y-shaped bipolar power cables.
These sleeves can be used to terminate cables Speaker, to provide protection and finish to the conductors. They are ideal for round bi-polar cables and although in most cases they are used for speaker cables, they can also be used for all cables with similar requirements.
Specifications:
- Diameters:
- Diameter D1: 19 mm – This is the access diameter of the unsheathed tubular cable.
- Diameter D2: 6 mm – This is the diameter through which the conductors must pass.
- Diameter D3: 9.2 mm – This is the outer diameter of the two bifurcations, important for connector selection.
- Lengths:
- Length L1: 195 mm – This is the total length of the piece
- Length L2: 58 mm – This is the length of the part of the cable to be sheathed
- Length L3: 137 mm – This is the length of the two bifurcations
- Recommendations for use:
- As a rubbery element, diameters and lengths may differ slightly from those described, so please consider a fair margin when selecting your product.
- For a better finish to the cable, you can purchase our stockings. In this case, consider an increase of about two millimetres in the diameter of the cable being strung.
- In order to professionally fix the sleeves to the cable, we recommend the use of our heat-shrinkable sleeves.
- If necessary, you can use cable grease to make it easier to insert the wires.
- What does it look like?
- Ricable termination sleeves are made of a special vinyl material that is very soft, flexible and has a glossy effect that allows it to retain its physical characteristics for a very long time. They are made hot, using a special oil mould and then individually cleaned of residues. As they have no welding points, they have a very important mechanical seal, even in demanding applications.
