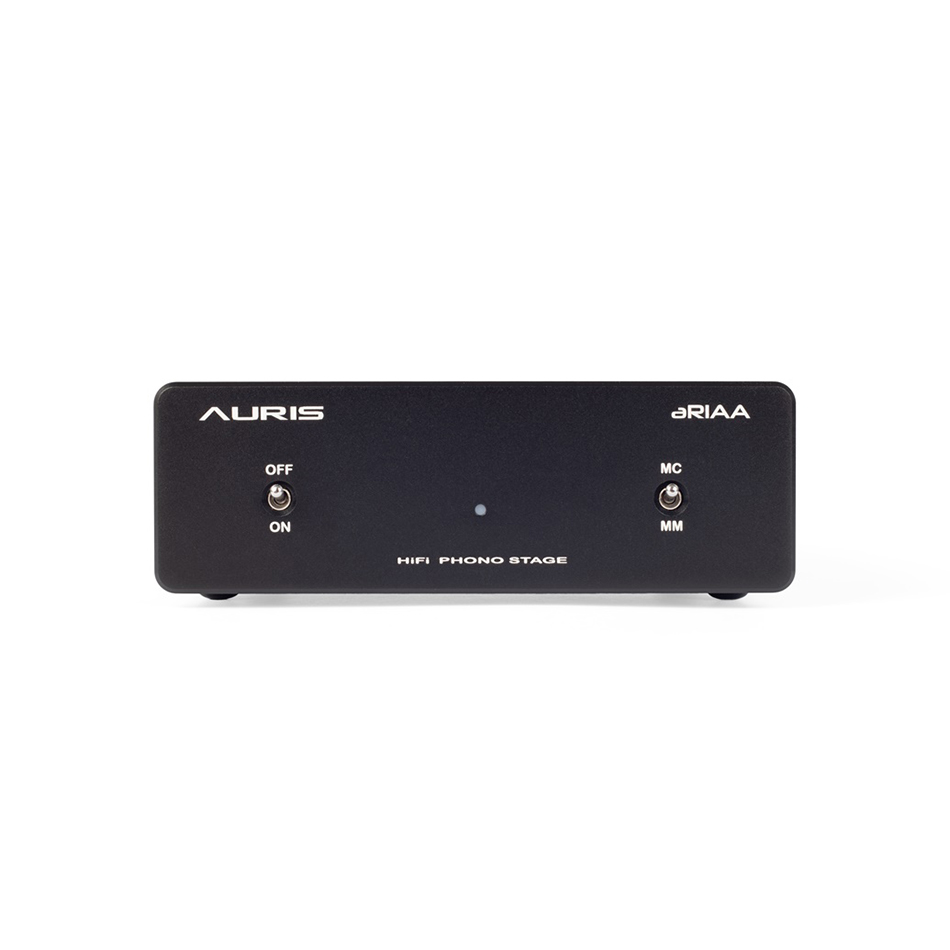

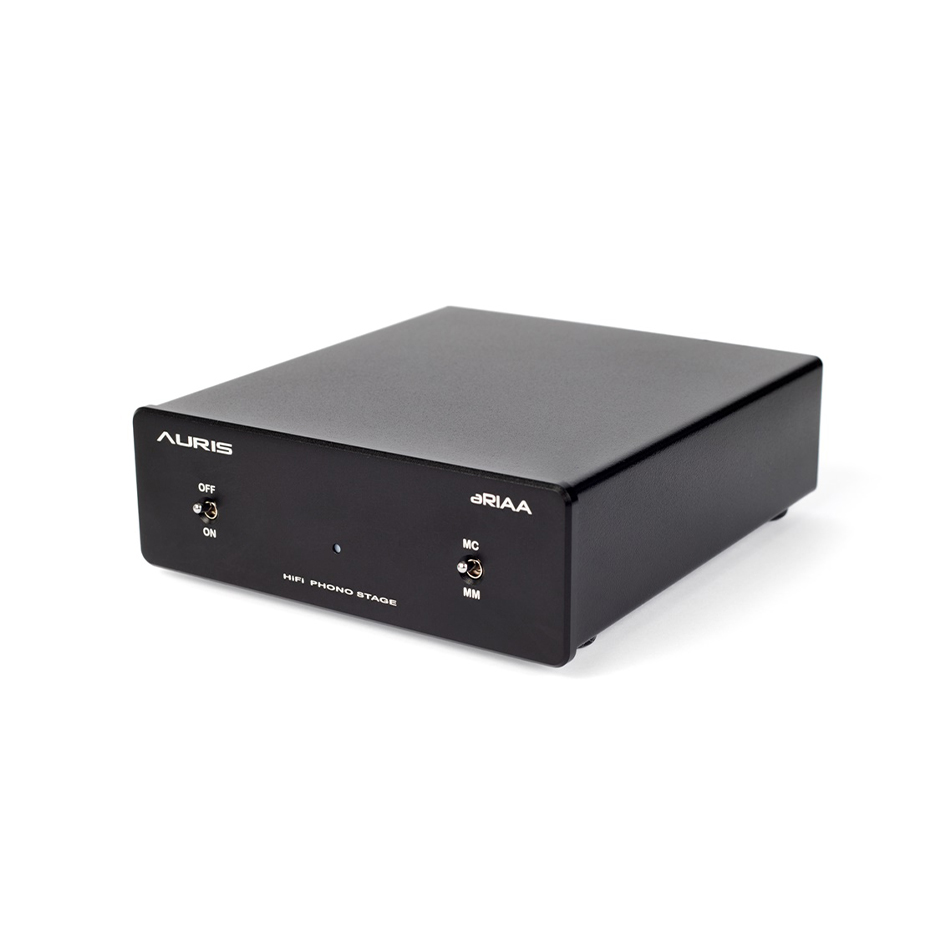

Auris aRIAA Phono Preamp

At the heart of the Phonio L lies our proprietary Sound Plus operational amplifiers, meticulously crafted and arranged in an advanced topology. This design ensures precise RIAA equalization, faithfully preserving every nuance of your vinyl recordings within the audible frequency spectrum. Say goodbye to unwanted hums and unpleasant harmonics; our innovative circuitry effectively suppresses these artifacts, delivering an immersive listening experience like no other.

Included with the aRIAA is a compact 16V AC adapter, thoughtfully designed to minimize interference while maximizing convenience. Its sleek profile ensures it won’t clutter your setup, while the option to position it away from the device minimizes noise interference, allowing the power supply circuitry to operate at optimal efficiency. For unrivaled performance, we’ve incorporated an LDO in conjunction with a BJT to achieve an ultra-low noise floor. This meticulously engineered power supply topology boasts an impressive PSRR (power supply rejection ratio), further enhancing the clarity and fidelity of your audio playback. Experience the pinnacle of vinyl playback with Auris aRIAA Phono Stage — where precision meets passion, and every note resonates with unparalleled clarity.

SPECIFICATIONS:

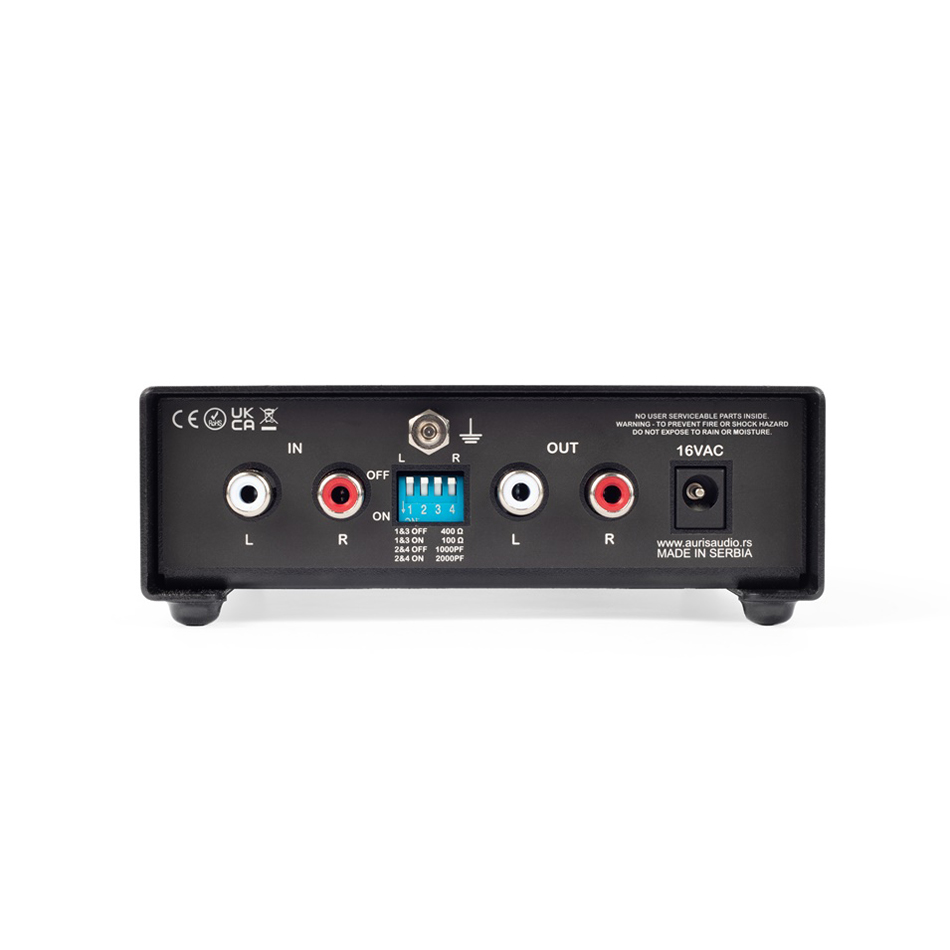

• Left/Right MC Loading Resistance: 1 and 3 OFF = 400 Ω / 1 only 3 ON = 100 Ω
• Capacitance: 2 and 4 OFF = 1000 pF / 2 only 4 ON = 2000 pF
• Left/Right MC Gain: 67 dB
• Left/Right MM Gain: 44 dB
• Dimensions V x L x H: 12.5 x 13 x 4.5 cm
• Weight: 450 gr

MM

• Max input level [at 1kHz]: 60mV
• Max output: 5V
• Gain: 44dB
• SNR[un-weighted]: >78dB
• THD+N: 0.01% at 1V
• THD: 0.0006%
• Freq. Response [20Hz-80kHz]: ±0.3dB
• RIAA accuracy: ±0.3dB
• Input sensitivity: 780mV [5mV input]

MC

• Max input level [at 1kHz]: 4mV
• Max output: 5V
• Gain: 67dB
• SNR[un-weighted]: >64dB at 1V Bandwidth
• THD+N: 0.07% at 1V Bandwidth 100Hz – 22kHz (-9dB low gain)
• THD: 0.004%
• Freq. Response [20Hz-80kHz]: ±0.3dB
• RIAA accuracy: ±0.3dB
• Input sensitivity: 0.5mV for 1.1V output
